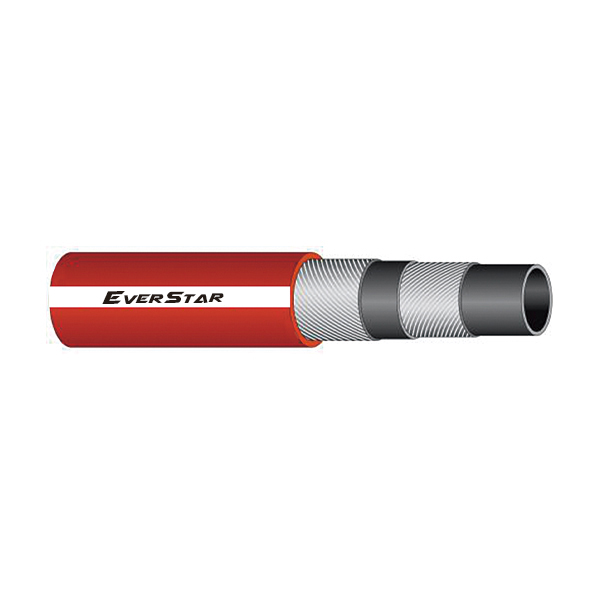

Tube: EPDM/SBR blended, black and smooth
Reinforcement: textile braided high tensile synthetic yarn
Cover: EPDM/SBR blended, Red, smooth weather and ozone, abrasion resistant
Application: for conveying welding gases
Temperature: -40℃~+90℃
| Inside Diameter |
Outside Diameter | Working Pressure |
Burst Pressure |
Nominal Weight |
Length | |||
 |
|
|
|
|
|
|||
| inch | mm | mm | bar | psi | bar | psi | kg/m | m |
| 1/4 | 6 | 13 | 20 | 300 | 60 | 900 | 0.17 | 50 / 100 |
| 5/16 | 8 | 15 | 20 | 300 | 60 | 900 | 0.22 | 50 / 100 |
| 3/8 | 10 | 18 | 20 | 300 | 60 | 900 | 0.29 | 50 / 100 |
| 1/2 | 13 | 21 | 20 | 300 | 60 | 900 | 0.37 | 50 / 100 |
| 5/8 | 16 | 25 | 20 | 300 | 60 | 900 | 0.56 | 50 |
| 3/4 | 19 | 29 | 20 | 300 | 60 | 900 | 0.65 | 50 |
| 1 | 25 | 36 | 20 | 300 | 60 | 900 | 0.86 | 50 |
Qingdao Everstar Rubber Co.,Ltd is a professional manufacturer and exporter of various hydraulic hoses and industrial hoses in China. We are also capable of providing high quality fittings and couplings to satisfy your crimping solution.
