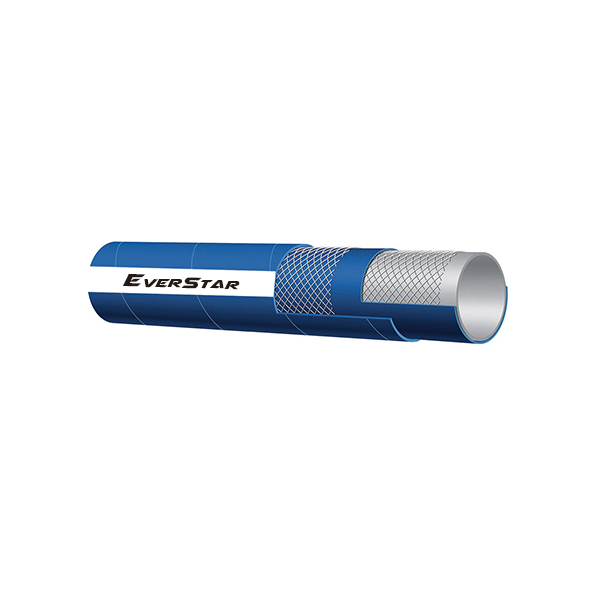

Tube：White,smooth, UHMWPE + EPDM
Reinforcement：High strength synthetic cord
Cover：Blue/Green, EPDM rubber, weather and ozone resistant
Working Temperature: -40℃ to +120℃
Applications: A more flexible chemical hose designed to handle 98% of all chemicals, solvents and corrosive liquids in both pressure and suction service
| Inside Diameter |
Outside Diameter | Working Pressure |
Burst Pressure |
Nominal Weight |
Bending Radius | Length | |||
 |
 |
 |
 |
 |
 |
 |
|||
| inch | mm | mm | bar | psi | bar | psi | kg/m | mm | m |
| 3/4 | 19 | 31 | 10 | 150 | 30 | 450 | 0.57 | 200 | 60 |
| 1 | 25 | 36 | 10 | 150 | 30 | 450 | 0.71 | 250 | 60 |
| 1-1/4 | 32 | 44 | 10 | 150 | 30 | 450 | 0.95 | 250 | 60 |
| 11/2 | 38 | 51 | 10 | 150 | 30 | 450 | 1.20 | 250 | 60 |
| 2 | 51 | 64 | 10 | 150 | 30 | 450 | 1.55 | 300 | 60 |
| 2-1/2 | 64 | 79 | 10 | 150 | 30 | 450 | 2.17 | 400 | 60 |
| 3 | 76 | 90 | 10 | 150 | 30 | 450 | 2.54 | 400 | 60 |
| 4 | 102 | 117 | 10 | 150 | 30 | 450 | 3.44 | 500 | 60 |
| 6 | 152 | 168 | 10 | 150 | 30 | 450 | 5.41 | 600 | 30 |
Qingdao Everstar Rubber Co.,Ltd is a professional manufacturer and exporter of various hydraulic hoses and industrial hoses in China. We are also capable of providing high quality fittings and couplings to satisfy your crimping solution.
