Construction:
Tube: NR/SBR/BR, black, smooth, anti-static, abrasion resistant
Reinforcement: Four layers High Tensile Steel Cords
Cover: SBR, black, anti-static, fabric impression
Temperature : -40°C/+80°C

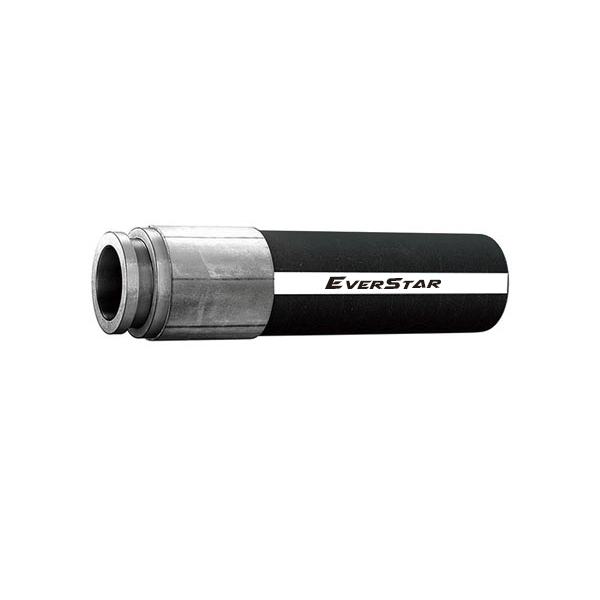

Application: Specially developed premium hose for conveying concrete using concrete pumps. Suitable for conveying highly abrasive medium such as concrete, cement and plaster. Long service life due to abrasion resistant tube. Flexible and easy to handle, with good kink resistance due to a special hose design. Suitable for reverse pumping, for easy cleaning.
| Size | Outside Ø | Working Pressure |
Burst Pressure |
Bend Radius | Length | |||
| Inch | mm | mm | Bar | Psi | Bar | Psi | mm | m |
| 2 | 51 | 68±1.5 | 85 | 1230 | 200 | 2900 | 200 | 2.8 |
| 2-1/2 | 64 | 85±1.5 | 85 | 1230 | 200 | 2900 | 250 | 4.0 |
| 3 | 76 | 102±1.5 | 85 | 1230 | 200 | 2900 | 270 | 6.0 |
| 3-1/2 | 89 | 116±1.5 | 85 | 1230 | 200 | 2900 | 290 | 7.5 |
| 4 | 102 | 130±1.75 | 85 | 1230 | 200 | 2900 | 300 | 9.2 |
| 4-1/” | 115 | 143±2 | 85 | 1230 | 200 | 2900 | 320 | 10.5 |
| 5 | 127 | 158±2 | 85 | 1230 | 200 | 2900 | 360 | 11.7 |
| 6 | 152 | 186±2 | 85 | 1230 | 200 | 2900 | 570 | 17.0 |
