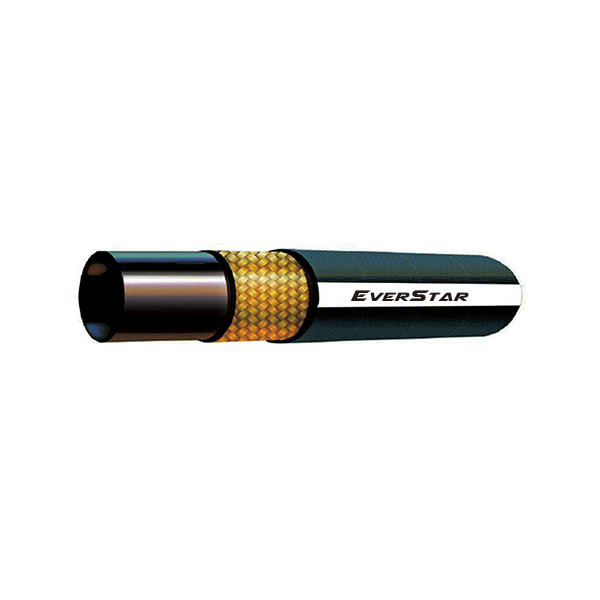

Construction:
Tube: Oil resistant synthetic rubber
Reinforcement: One braid of high tensile steel wire
Cover:Oil and weather resistant synthetic rubber
Temperature:-40°C to +100°C
Application:Be suitable to carry hydraulic fluids,such as glycol,mineral oils,emulsion,hydrocarbons,etc.
| Size | Inside Ø mm |
Outside Ø mm |
Working Pressure |
Burst Pressure | Bend Radius | Length | Weight | ||||
| Inch | mm | Min | Max | Max | Bar | Psi | Bar | Psi | mm | m | Kg/m |
| 1/4 | 6.4 | 6.1 | 6.9 | 13.5 | 300 | 4350 | 1200 | 17400 | 75 | 50/100 | 0.14 |
| 5/16 | 7.9 | 7.7 | 8.5 | 14.5 | 275 | 3980 | 1100 | 15950 | 80 | 50/100 | 0.20 |
| 3/8 | 9.5 | 9.3 | 10.1 | 16.9 | 225 | 3263 | 900 | 13050 | 90 | 50/100 | 0.26 |
| 1/2 | 12.7 | 12.3 | 13.5 | 20.4 | 200 | 2900 | 800 | 11600 | 127 | 50/100 | 0.35 |
| 5/8 | 15.9 | 15.5 | 16.7 | 23.0 | 150 | 2175 | 600 | 8700 | 153 | 50/100 | 0.48 |
| 3/4 | 19.0 | 18.6 | 19.8 | 26.7 | 150 | 2175 | 600 | 8700 | 180 | 50/100 | 0.60 |
| 1 | 25.4 | 25.0 | 26.4 | 34.9 | 110 | 1595 | 450 | 6525 | 230 | 50 | 0.90 |
Qingdao Everstar Rubber Co.,Ltd is a professional manufacturer and exporter of various hydraulic hoses and industrial hoses in China. We are also capable of providing high quality fittings and couplings to satisfy your crimping solution.
