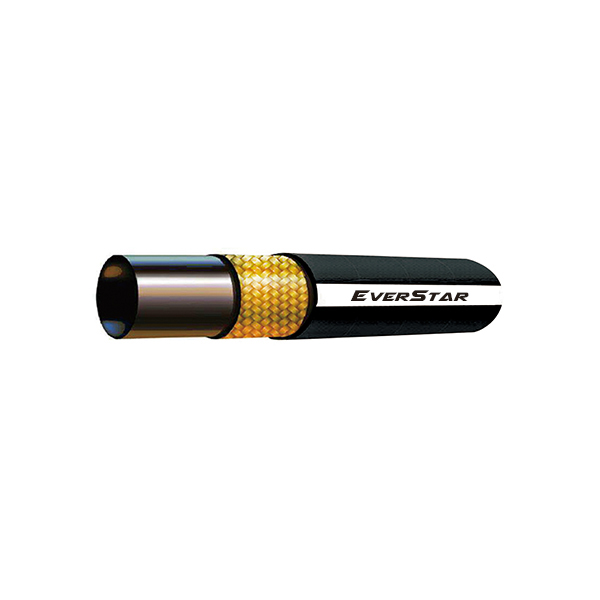

Construction:
Tube: Oil resistant synthetic rubber
Reinforcement: One high tensile steel wire braid
Cover: Oil and weather resistant synthetic rubber
Temperature: -40°C to +100°C
Application: Petroleum based hydraulic fluid,gasoline, water, diesel fuels, lubricating oils, glycol, mineral oils, and more
| Size | Inside
Ø mm |
Braid
Ø mm |
Outside
Ø mm |
Working
Pressure |
Burst Pressure | Bend Radius | Length | Weight | |||||
| Inch | mm | Min | Max | Min | Max | Max | Bar | Psi | Bar | Psi | mm | m | Kg/m |
| 3/16″ | 5 | 4.6 | 5.4 | 9.0 | 10.0 | 12.5 | 250 | 3625 | 1000 | 14500 | 90 | 50/100 | 0.19 |
| 1/4″ | 6.3 | 6.2 | 7.0 | 10.6 | 11.1 | 14.1 | 225 | 3260 | 900 | 13050 | 100 | 50/100 | 0.21 |
| 5/16″ | 8 | 7.7 | 8.5 | 12.1 | 12.7 | 15.7 | 215 | 3120 | 850 | 12325 | 115 | 50/100 | 0.24 |
| 3/8″ | 10 | 9.3 | 10.1 | 14.5 | 15.1 | 18.1 | 180 | 2610 | 720 | 10440 | 130 | 50/100 | 0.33 |
| 1/2″ | 12.5 | 12.3 | 13.5 | 17.5 | 18.3 | 21.4 | 160 | 2320 | 640 | 9280 | 180 | 50/100 | 0.41 |
| 5/8″ | 16 | 15.5 | 16.7 | 20.6 | 21.4 | 24.5 | 130 | 1885 | 520 | 7540 | 200 | 50/100 | 0.45 |
| 3/4″ | 19 | 18.6 | 19.8 | 24.6 | 25.4 | 28.5 | 105 | 1520 | 420 | 6090 | 240 | 50/100 | 0.58 |
| 1″ | 25 | 25.0 | 26.4 | 32.5 | 33.3 | 36.6 | 88 | 1280 | 350 | 5075 | 300 | 50/100 | 0.88 |
| 1 1/4″ | 31.5 | 31.4 | 33.0 | 39.3 | 40.5 | 44.8 | 63 | 910 | 250 | 3625 | 420 | 20/40 | 1.23 |
| 1 1/2″ | 38 | 37.7 | 39.3 | 45.6 | 46.8 | 52.1 | 50 | 725 | 200 | 2900 | 500 | 20/40 | 1.51 |
| 2″ | 51 | 50.4 | 52.0 | 58.7 | 60.2 | 65.5 | 40 | 580 | 160 | 2320 | 630 | 20/40 | 1.97 |
