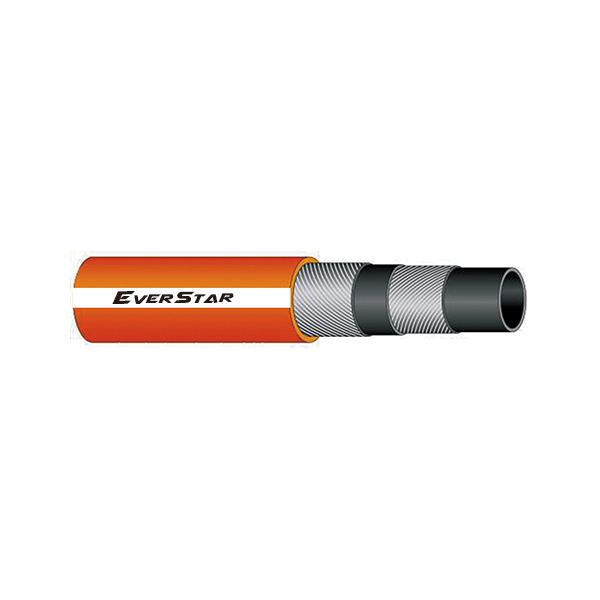

Tube:NBR,black,smooth
Reinforcement: textile braided high tensile synthetic yarn
Cover: orange CR blended,ozone and weather resistant and abrasion-proof,smooth
Application:for conveyance of liquid gas,home burner system,grill,oil-resistant
Temperature: -40℃to~+90℃
| Inside Diameter |
Outside Diameter | Working Pressure |
Burst Pressure |
Nominal Weight |
Bending Radius | Length | |||
 |
|
|
|
|
|
|
|||
| inch | mm | mm | bar | psi | bar | psi | kg/m | mm | m |
| 1/4 | 6 | 13 | 20 | 300 | 60 | 900 | 0.15 | 60 | 50 / 100 |
| 5/16 | 8 | 15 | 20 | 300 | 60 | 900 | 0.21 | 65 | 50 / 100 |
| 3/8 | 10 | 18 | 20 | 300 | 60 | 900 | 0.27 | 80 | 50 / 100 |
Qingdao Everstar Rubber Co.,Ltd is a professional manufacturer and exporter of various hydraulic hoses and industrial hoses in China. We are also capable of providing high quality fittings and couplings to satisfy your crimping solution.
