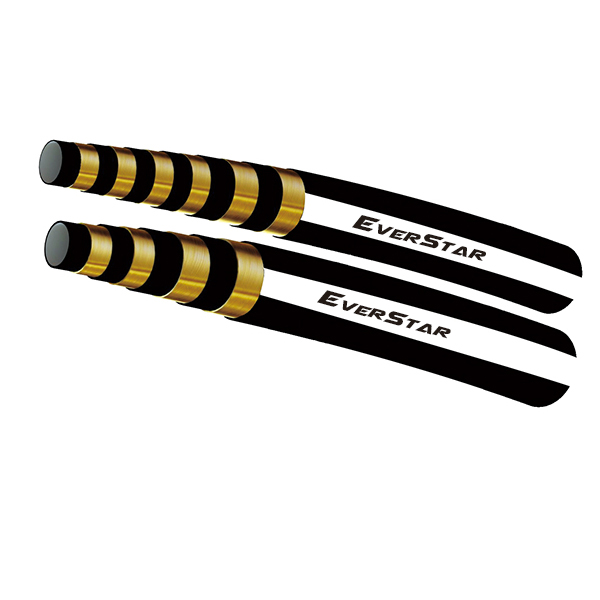

Construction:
Tube: Oil resistant synthetic rubber
Reinforcement: Four or six high tensile steel wire spiral layers
Cover: Abrasion, ozone and weather resistant synthetic rubber
Temperature: -40°C to +121°C
Application: Petroleum based hydraulic fluid, gasoline, water, diesel fuels, lubricating oils, glycol, mineral oils, and more
| Size | SAE | Inside
Ø mm |
Outside
Ø mm |
Working
Pressure |
Burst
Pressure |
Bend Radius | Length | Weight | |||||
| mm | Inch | Dash | Min | Max | Min | Max | Bar | Psi | Bar | Psi | mm | m | Kg/m |
| 19 | 3/4 | -12 | 18.6 | 19.8 | 31.0 | 33.2 | 350 | 5075 | 1400 | 20300 | 240 | 20/40 | 1.68 |
| 25 | 1 | -16 | 25.0 | 26.4 | 37.6 | 39.8 | 350 | 5075 | 1400 | 20300 | 300 | 20/40 | 2.24 |
| 31.5 | 1 1/4 | -20 | 31.4 | 33.0 | 48.3 | 51.3 | 350 | 5075 | 1400 | 20300 | 420 | 20/40 | 3.90 |
| 38 | 1 1/2 | -24 | 37.7 | 39.3 | 55.8 | 58.8 | 350 | 5075 | 1400 | 20300 | 500 | 20/40 | 4.90 |
| 51 | 2 | -32 | 50.4 | 52.0 | 69.5 | 72.7 | 350 | 5075 | 1400 | 20300 | 640 | 20/40 | 6.90 |
Qingdao Everstar Rubber Co.,Ltd is a professional manufacturer and exporter of various hydraulic hoses and industrial hoses in China. We are also capable of providing high quality fittings and couplings to satisfy your crimping solution.
