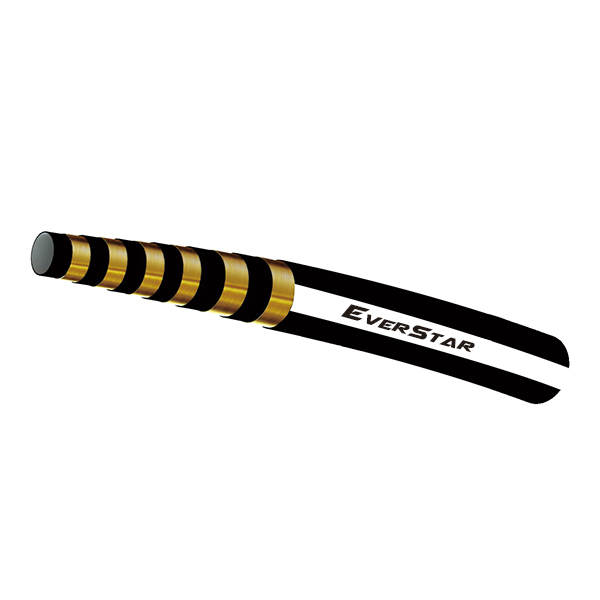

Construction:
Tube: Oil resistant synthetic rubber
Reinforcement: Six high tensile steel wire spiral layers
Cover: Abrasion, ozone and weather resistant synthetic rubber
Temperature: -40°C to +121°C
Application: Petroleum based hydraulic fluid, gasoline, water, diesel fuels, lubricating oils, glycol, mineral oils, and more
| Size | SAE | ID
Ø mm |
OD Ø mm | Working
Pressure |
Burst
Pressure |
Bend Radius | Length | Weight | ||||
| mm | Inch | Dash | Max | Max | Bar | Psi | Bar | Psi | mm | m | Kg/m | |
| 19 | 3/4 | -12 | 19.8 | 36.1 | 420 | 6090 | 1680 | 24360 | 240 | 20/40 | 1.5 | |
| 25 | 1 | -16 | 26.4 | 42.9 | 420 | 6090 | 1680 | 24360 | 300 | 20/40 | 2.1 | |
| 31.5 | 11/4 | -20 | 33.0 | 51.5 | 420 | 6090 | 1680 | 24360 | 420 | 20/40 | 3.8 | |
| 38 | 11/2 | -24 | 39.3 | 59.6 | 420 | 6090 | 1680 | 24360 | 500 | 20/40 | 5.1 | |
| 51 | 2 | -32 | 52.0 | 72.7 | 420 | 6090 | 1680 | 24360 | 630 | 20/40 | 7.0 | |
Qingdao Everstar Rubber Co.,Ltd is a professional manufacturer and exporter of various hydraulic hoses and industrial hoses in China. We are also capable of providing high quality fittings and couplings to satisfy your crimping solution.
