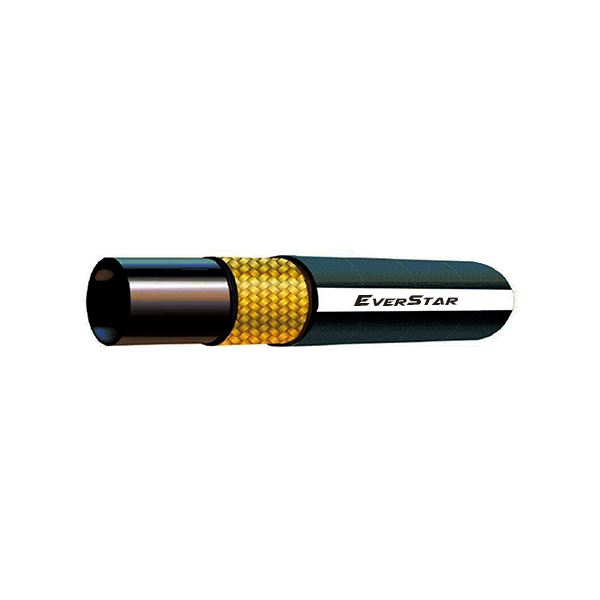

Construction:
Tube: Oil resistant synthetic rubber
Reinforcement: One or two high tensile steel wire braids
Cover: Oil and weather resistant synthetic rubber
Temperature: -40°C to +121°C
Application: Petroleum based hydraulic fluid, gasoline, water, diesel fuels, lubricating oils, glycol, mineral oils, and more
| Size | SAE | Inside
Ø mm |
Outside
Ø mm |
Working
Pressure |
Burst
Pressure |
Bend
Radius |
Length | Weight | ||||
| mm | Inch | Dash | Min | Max | Max | Bar | Psi | Bar | Psi | mm | m | Kg/m |
| 6.3 | 1/4 | -04 | 6.2 | 7.0 | 13.2 | 210 | 3045 | 840 | 12180 | 50 | 50/100 | 0.18 |
| 8 | 5/16 | -05 | 7.7 | 8.5 | 15.0 | 210 | 3045 | 840 | 12180 | 55 | 50/100 | 0.21 |
| 10 | 3/8 | -06 | 9.3 | 10.1 | 17.0 | 210 | 3045 | 840 | 12180 | 65 | 50/100 | 0.28 |
| 12.5 | 1/2 | -08 | 12.3 | 13.5 | 21.1 | 210 | 3045 | 840 | 12180 | 90 | 50/100 | 0.47 |
| 16 | 5/8 | -10 | 15.5 | 16.7 | 25.9 | 210 | 3045 | 840 | 12180 | 100 | 50/100 | 0.80 |
| 19 | 3/4 | -12 | 18.6 | 19.8 | 30.3 | 210 | 3045 | 840 | 12180 | 120 | 50 | 0.94 |
| 25 | 1 | -16 | 25.0 | 26.4 | 38.6 | 210 | 3045 | 840 | 12180 | 150 | 50 | 1.35 |
Qingdao Everstar Rubber Co.,Ltd is a professional manufacturer and exporter of various hydraulic hoses and industrial hoses in China. We are also capable of providing high quality fittings and couplings to satisfy your crimping solution.
