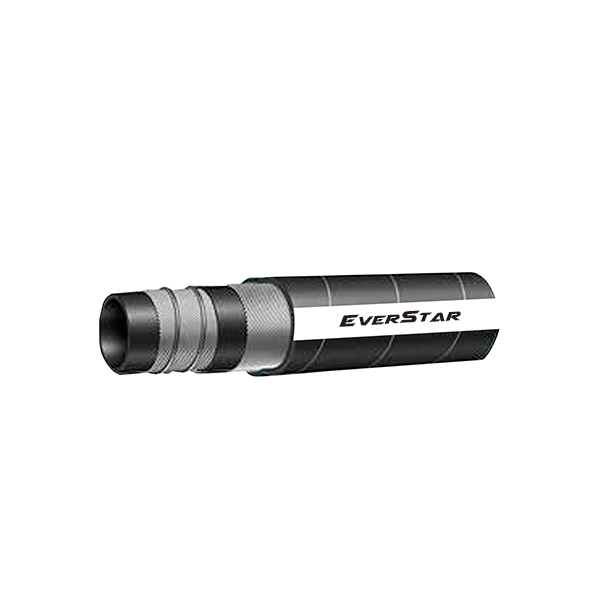

Construction:
Tube: Oil resistant synthetic rubber
Reinforcement: High tensile cords and helix steel wire
Cover: Oil and weather resistant synthetic rubber
Temperature: -40°C to +100°C
Application: Petroleum based hydraulic fluid, gasoline, water, diesel fuels, lubricating oils, glycol, mineral oils, and more
| Size | SAE | Inside
Ø mm |
Outside
Ø mm |
Working
Pressure |
Burst
Pressure |
Bend Radius | Length | Weight | ||||
| mm | Inch | Dash | Min | Max | Max | Bar | Psi | Bar | Psi | mm | m | Kg/m |
| 19 | 3/4 | -12 | 18.2 | 19.8 | 34.9 | 21 | 305 | 84 | 1210 | 125 | 40/60 | 0.92 |
| 25 | 1 | -16 | 24.6 | 26.2 | 41.3 | 17 | 250 | 70 | 1015 | 150 | 40/60 | 1.10 |
| 32 | 1 1/4 | -20 | 30.6 | 33.0 | 50.8 | 14 | 200 | 56 | 810 | 200 | 40/60 | 1.30 |
| 38 | 1 1/2 | -24 | 36.9 | 39.3 | 57.2 | 10.5 | 150 | 42 | 610 | 255 | 40/60 | 1.80 |
| 51 | 2 | -32 | 49.2 | 52.4 | 69.9 | 7 | 100 | 28 | 410 | 300 | 40/60 | 2.23 |
| 63 | 2 1/2 | -40 | 61.9 | 65.1 | 82.6 | 4 | 60 | 17 | 250 | 355 | 40/60 | 3.23 |
| 76 | 3 | -48 | 74.6 | 77.8 | 95.3 | 4 | 60 | 16 | 230 | 460 | 40/60 | 4.25 |
| 89 | 3 1/2 | -56 | 87.3 | 90.5 | 107.9 | 3 | 40 | 12.5 | 180 | 530 | 40/60 | 5.05 |
| 102 | 4 | -64 | 100.0 | 103.2 | 120.7 | 2.5 | 40 | 10 | 145 | 610 | 40/60 | 5.60 |
Qingdao Everstar Rubber Co.,Ltd is a professional manufacturer and exporter of various hydraulic hoses and industrial hoses in China. We are also capable of providing high quality fittings and couplings to satisfy your crimping solution.
