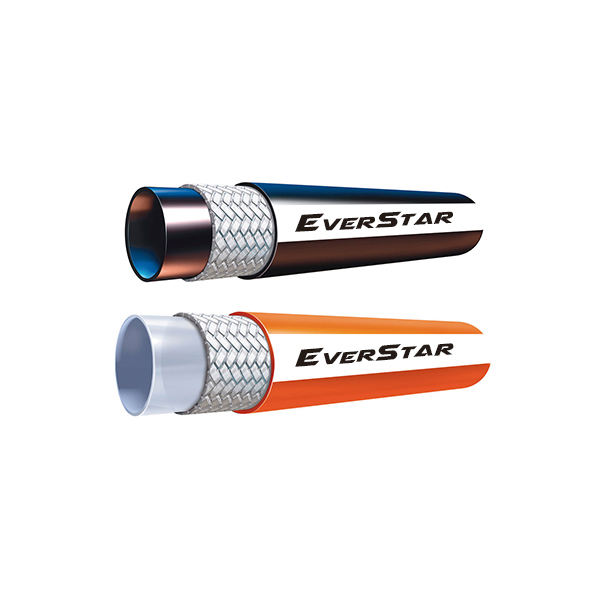

Construction:
Tube: Oil-resistant synthetic thermoplastic core(Nylon)
Reinforcement: One braid of high tensile synthetic fiber
Cover: Abrasion-resistant polyurethane
Temperature: -40°C to +100°C
Application: Automobile,construction machinery,lathe,agriculture,
Machine,mining,Spurting the oil paint,navigation & spaceflight, cooling and other hydraulic control system.
| Size | SAE | Inside
Ø mm |
Outside
Ø mm |
Working
Pressure |
Burst
Pressure |
Bend
Radius |
Length | |
| mm | Dash | Inch | Min | Max | Mpa | Mpa | mm | m |
| 3 | -2 | 1/8″ | 3.2 | 8.5 | 17.2 | 68.8 | 13 | 100 |
| 5 | -3 | 3/16″ | 4.8 | 10.8 | 21.0 | 84.0 | 33 | 100 |
| 6 | -4 | 1/4″ | 6.4 | 13.0 | 19.0 | 76.0 | 38 | 100 |
| 8 | -5 | 5/16″ | 8.0 | 15.1 | 17.5 | 70.0 | 46 | 100 |
| 10 | -6 | 3/8″ | 9.5 | 17.0 | 15.7 | 62.8 | 51 | 100 |
| 13 | -8 | 1/2″ | 12.7 | 20.7 | 14.0 | 56.0 | 76 | 100 |
| 16 | -10 | 5/8″ | 16.0 | 22.0 | 11.0 | 44.0 | 110 | 100 |
| 19 | -12 | 3/4″ | 19.0 | 26.0 | 8.7 | 34.8 | 127 | 50 |
| 25 | -16 | 1″ | 25.0 | 32.0 | 7.0 | 28.0 | 203 | 50 |
