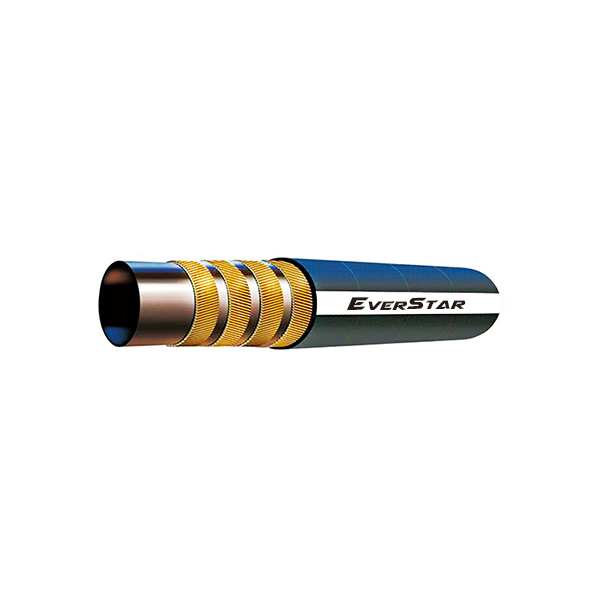

Construction:
Tube: Oil resistant synthetic rubber
Reinforcement: Four high tensile steel wire spiral layers
Cover: Abrasion, ozone and weather resistant synthetic rubber
Temperature: -40°C to +100°C
Application: Petroleum based hydraulic fluid, gasoline, water, diesel fuels, lubricating oils, glycol, mineral oils, and more
| Size | SAE | Inside
Ø mm |
Outside
Ø mm |
Working
Pressure |
Burst
Pressure |
Bend Radius | Length | Weight | |||||
| mm | inch | Dash | Min | Max | Max | Bar | Psi | Bar | Psi | mm | m | Kg/m | |
| 10 | 3/8 | -06 | 9.3 | 10.1 | 20.6 | 21.1 | 315 | 4560 | 630 | 9135 | 125 | 20/40 | 0.70 |
| 12.5 | 1/2 | -08 | 12.3 | 13.5 | 23.8 | 24.3 | 280 | 4060 | 560 | 8120 | 180 | 20/40 | 0.83 |
| 19 | 3/4 | -12 | 18.6 | 19.8 | 30.6 | 31.9 | 210 | 3045 | 420 | 6090 | 240 | 20/40 | 1.30 |
| 25 | 1 | -16 | 25.0 | 26.4 | 38.5 | 40.5 | 210 | 3045 | 420 | 6090 | 300 | 20/40 | 1.70 |
| 31.5 | 11/4 | -20 | 31.4 | 33.0 | 49.2 | 50.7 | 175 | 2540 | 350 | 5075 | 420 | 20/40 | 3.08 |
| 38 | 11/2 | -24 | 37.7 | 39.3 | 55.6 | 140 | 2030 | 280 | 4060 | 500 | 20/40 | 4.30 | |
| 51 | 2 | -32 | 50.4 | 52.0 | 69.9 | 140 | 2030 | 280 | 4060 | 660 | 20/40 | 5.63 | |
