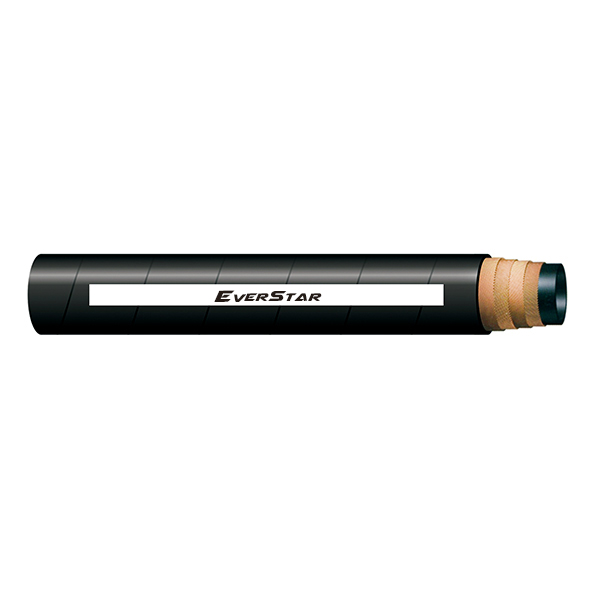

Tube: Smooth, black, anti-static, abrasion resistant NR/BR rubber compound. Abrasion lose according to DIN 53516:1987. Max. 60-70 mm3.
Reinforcement: High tensile textile cord
Cover: Black, anti-static, weather and abrasion resistant SBR/NR rubber compound, cloth impression.
Application: Delivering quartz and metal sand, polishing, ridding rust on metal surface and spraying cement. It is manufactured with anti-static rubber granting a complete discharge of static electricity
Temperature: -35℃~+80℃
| Inside Diameter |
Outside Diameter | Working Pressure |
Burst Pressure |
Nominal Weight |
Length | |||
 |
 |
 |
 |
 |
 |
|||
| inch | mm | mm | bar | psi | bar | psi | kg/m | m |
| 3/4 | 19 | 33 | 12 | 174 | 36 | 522 | 0.66 | 40 / 60 |
| 1 | 25 | 39 | 12 | 174 | 36 | 522 | 0.89 | 40 / 60 |
| 1-1/4 | 32 | 48 | 12 | 174 | 36 | 522 | 1.29 | 40 / 60 |
| 1-1/2 | 38 | 54 | 12 | 174 | 36 | 522 | 1.57 | 40 / 60 |
| 2 | 51 | 70 | 12 | 174 | 36 | 522 | 2.39 | 40 / 60 |
| 2-1/2 | 64 | 84 | 12 | 174 | 36 | 522 | 2.98 | 40 / 60 |
| 3 | 76 | 99 | 12 | 174 | 36 | 522 | 4.30 | 40 / 60 |
Qingdao Everstar Rubber Co.,Ltd is a professional manufacturer and exporter of various hydraulic hoses and industrial hoses in China. We are also capable of providing high quality fittings and couplings to satisfy your crimping solution.
