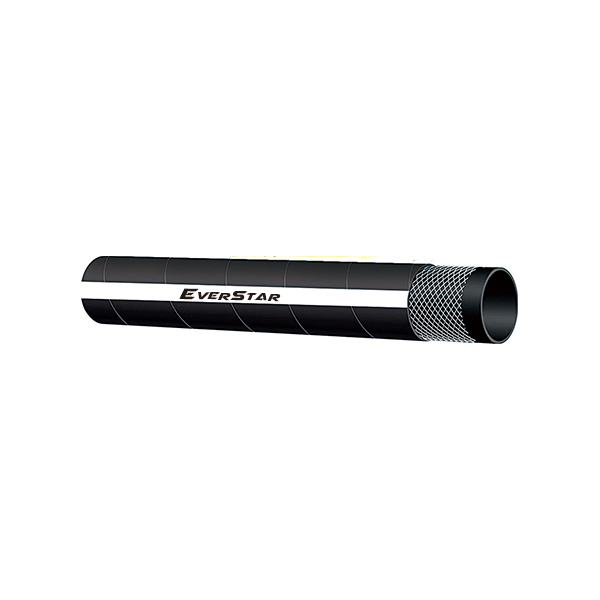

Steam Hose

Tube: EPDM compound synthetic rubber

Reinforcement: High strength synthetic cord

Cover: EPDM compound synthetic rubber

Temperature: -20~+150

Application: Widely used in automobile industry, cleaning equipment, cooling systems

Inside Diameter		Outside Diameter	Working Pressure		Burst Pressure		Bending Radius	Nominal Weight	Length

inch	mm	mm	bar	psi	bar	psi	mm	kg/m	ft	m
1/4	6	14	10	150	40	600	60	0.17	328	100
5/16	8	16	10	150	40	600	75	0.20	328	100
3/8	10	18	10	150	40	600	75	0.24	328	100
1/2	13	22	10	150	40	600	100	0.33	328	100
5/8	16	26	10	150	40	600	125	0.45	328	100
3/4	19	29	10	150	40	600	150	0.51	328	100
1	25	37	10	150	40	600	200	0.70	328	100
1-1/4	32	45	10	150	40	600	250	1.02	200	61
1-1/2	38	52	10	150	40	600	300	1.37	200	61
2	51	65	10	150	40	600	350	1.76	200	61
2-1/2	64	79	10	150	40	600	450	2.24	200	61
3	76	92	10	150	40	600	450	3.03	200	61
4	102	118	10	150	40	600	600	3.70	200	61
