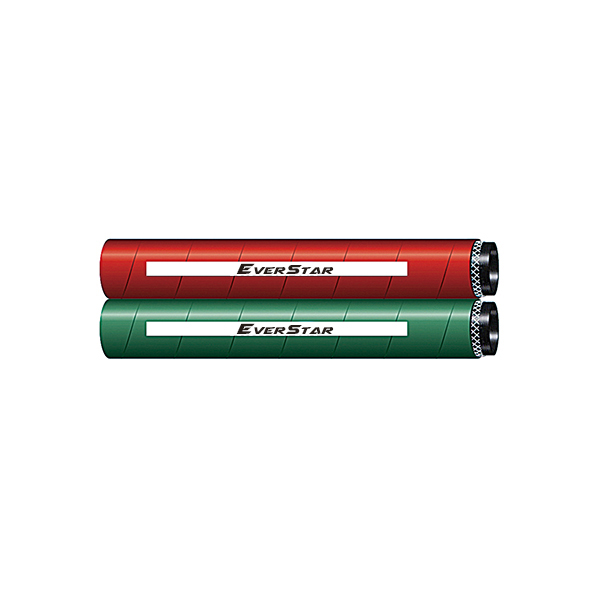

Tube: EPDM/SBR blended, black and smooth
Reinforcement: textile braided high tensile synthetic yarn
Cover: EPDM/SBR blended, blue,red,green, smooth weather and ozone, abrasion resistant
Application: for conveying welding gases
Temperature: -40℃~+90℃
| Red (acetylene) | Blue /Green (oxygen) | |||||||||
| Inside Diameter |
Outside Diameter | Working Pressure |
Burst Pressure |
Inside Diameter |
Outside Diameter | Working Pressure |
Burst Pressure |
|||
|
|
|
|
|
|
|
|
|
|||
| inch | mm | mm | bar | bar | inch | mm | mm | bar | bar | |
| 1/4 | 6 | 13 | 20 | 60 | 1/4 | 6 | 13 | 20 | 60 | |
| 5/16 | 8 | 15 | 20 | 60 | 5/16 | 8 | 15 | 20 | 60 | |
| 3/8 | 10 | 18 | 20 | 60 | 3/8 | 10 | 18 | 20 | 60 | |
Qingdao Everstar Rubber Co.,Ltd is a professional manufacturer and exporter of various hydraulic hoses and industrial hoses in China. We are also capable of providing high quality fittings and couplings to satisfy your crimping solution.
